Update Variable Node

The Update Variable node saves information so you can use it later in your workflow. Think of it like writing something down on a sticky note so you don’t forget it.

When to Use

Remember something - Save an AI response to use in multiple places
Collect results - Build a list of results as you loop through items
Track progress - Keep track of counts or status
Give things names - Create easy-to-remember names for complex data
Save between runs - Some variables can persist even after the workflow ends
Save different things based on conditions - Store different values depending on what happened

Example: Store Processing Results

Save AI analysis results for use in multiple downstream nodes:

Analyze with Ask AI

Use an Ask AI node to analyze incoming data and return structured results.

Store the results

Add an Update Variable node:

Variable name: analysisResults
Value: {{llm_1.response}}
Scope: execution

Use in multiple places

Reference {{set_variable_1.value}} in subsequent nodes:

Send to CRM
Include in Slack notification
Add to spreadsheet

Why this helps:

Cleaner references: {{set_variable_1.value.score}} vs {{llm_1.response.score}}
Parse JSON once, use everywhere
Clear documentation of what data means

Example: Accumulate Loop Results

Collect results from each loop iteration:

├── Update Variable (processedItems = [], initialize empty array)
├── Loop (over incoming items)
│   ├── Ask AI (process each item)
│   └── Update Variable (processedItems, append {{llm_1.response}})
└── External API (Slack: Post summary of {{set_variable_1.value.length}} items)

Configuration for accumulation:

Variable name: processedItems
Value: {{llm_1.response}}
Operation: append

Each iteration adds to the array.

Example: Persistent Counter

Track how many times a workflow has run: Configuration:

Variable name: runCount
Value: 1
Operation: increment
Scope: application (persists between runs)

Access the count: {{set_variable_1.value}} Use this for:

Rate limiting
Usage tracking
Triggering actions after N runs

Example: Conditional Storage

Store different values based on conditions:

├── Ask AI (analyze email sentiment)
├── Condition (sentiment == "negative")
│   ├── Met: Update Variable (priority = "high")
│   └── Unmet: Update Variable (priority = "normal")
├── Wait & Combine
└── External API (create ticket with priority = {{set_variable_1.value}})

Both branches set the same variable name, and Wait & Combine waits for whichever branch executes.

Two Ways to Save Variables

During This Run Only (Default)

Most variables only exist while your workflow is running:

Run 1: Save counter = 5
Run 2: counter doesn't exist (starts fresh again)

Good for:

Temporary calculations
Storing results while working
Most everyday use cases

Remember Between Runs

Some variables can be remembered even after the workflow ends:

Run 1: Save totalProcessed = 100
Run 2: Add 1 to totalProcessed → 101
Run 3: Read totalProcessed → 101

Good for:

Counting things over time
Remembering when something last happened
Settings that rarely change

Persistent variables are shared between all runs. If your workflow runs multiple times at once, they might conflict. Use “during this run only” when possible.

Operations

Set (Replace)

Replace the entire value:

Before: items = ["a", "b"]
Set: items = ["x", "y", "z"]
After: items = ["x", "y", "z"]

Append (Arrays)

Add an item to an existing array:

Before: items = ["a", "b"]
Append: "c"
After: items = ["a", "b", "c"]

Increment (Numbers)

Add to an existing number:

Before: count = 5
Increment: 3
After: count = 8

Works with negative values for decrementing.

Merge (objects)

Combine objects, with new values overwriting:

Before: config = {host: "old", port: 80}
Merge: {host: "new", timeout: 30}
After: config = {host: "new", port: 80, timeout: 30}

Accessing Variables

From the Same Run

Use the Update Variable node’s output:

{{set_variable_1.value}}
{{set_variable_1.value.propertyName}}

Application Variables

Application-scoped variables can be referenced by name:

{{variables.runCount}}
{{variables.lastProcessedId}}

Tips

Initialize variables at the start of your workflow before loops or conditional branches. This ensures the variable exists regardless of which path executes.

Use descriptive variable names that explain the data’s purpose: qualifiedLeads is better than data1.

Store structured objects rather than multiple individual variables when data is related:

{
  "customer": {
    "name": "...",
    "email": "...",
    "tier": "..."
  }
}

Don’t use Update Variable inside a loop if you just need the final result. Each iteration overwrites the previous value. Use append to collect all results.

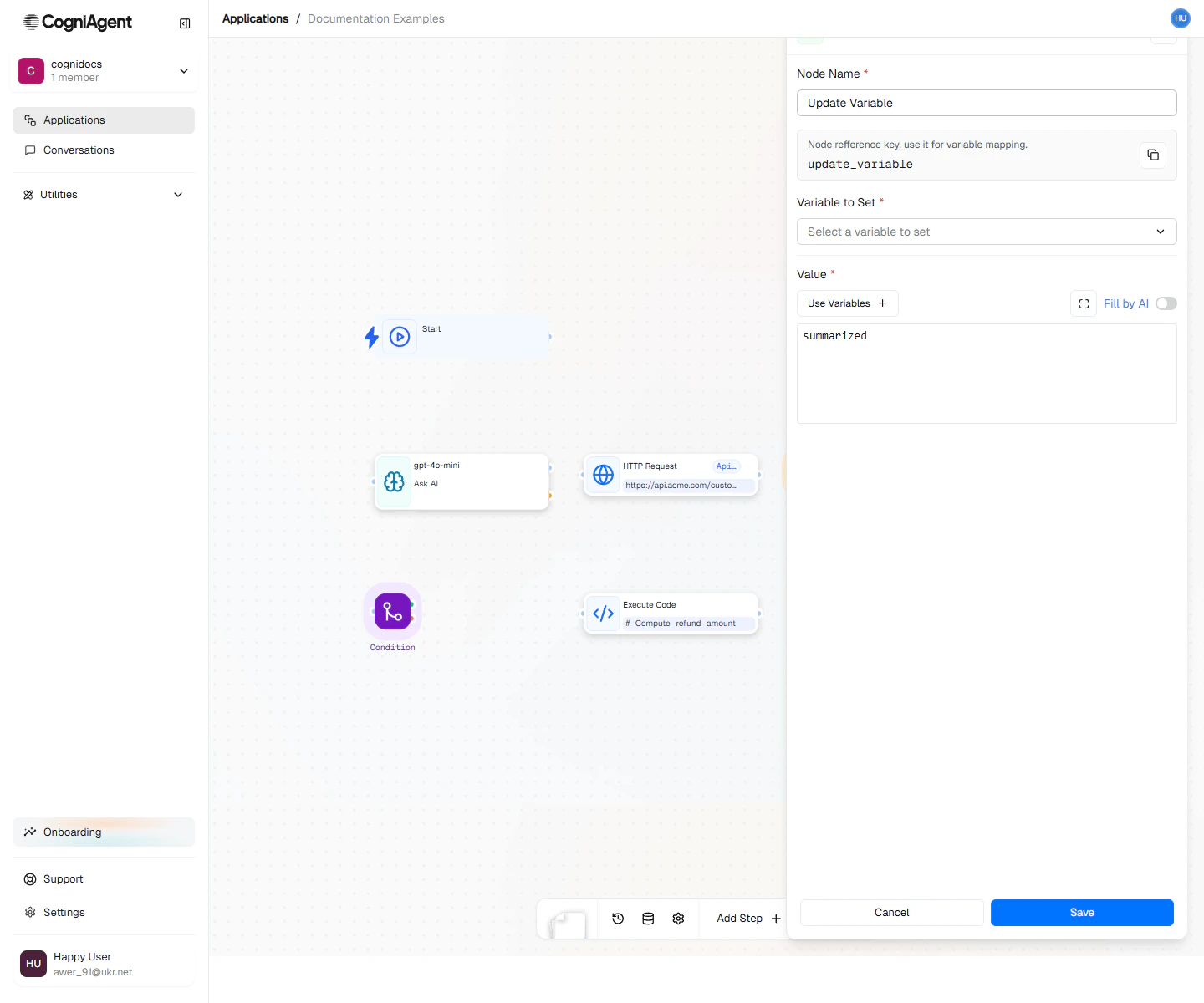

Settings

string

default:"Update Variable"

What to call this node (shown on the canvas).

string

default:"set_variable_1"

A short code to reference this node’s value.

string

required

What to call the variable. Use clear names like customerEmail or totalAmount.

any

required

What to save. Can be typed directly, or pulled from a previous node.

string

default:"execution"

How long to keep the variable:

execution - Only during this run (default, use this most of the time)
application - Remember it even after the workflow ends

string

default:"set"

What to do with the value:

set - Replace whatever was there before
append - Add to an existing list
increment - Add to an existing number
merge - Combine with an existing object

Outputs

any

The value that was stored.

any

The previous value (useful for tracking changes).

string

The name of the variable that was set.

On Variable Update

Trigger workflows when application variables change.

Loop

Iterate over collections, accumulating results.
